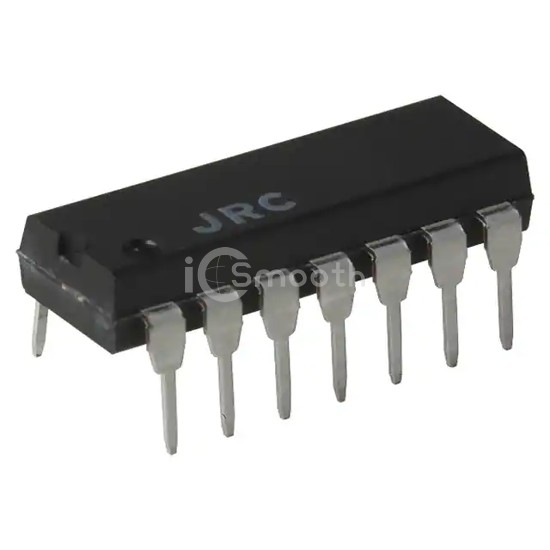

NJU7670D

In Stock: 3,406
NJU7670D - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: NJU7670D Nisshinbo Micro Devices Inc.
NJU7670D

Nisshinbo Micro Devices Inc.

IC REG CHARGE PUMP NVIN 14DIP

NJU7670D is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. IC REG CHARGE PUMP NVIN 14DIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 75°C (TA), package / case 14-DIP, current - output 20mA.

Datasheet Request a Quote

In Stock: 3,406

Specifications

17 parameters
Product StatusActive
FunctionRatiometric
Output ConfigurationNegative
TopologyCharge Pump
Output TypeFixed
Number of Outputs1
Voltage - Input (Min)-2.6V
Voltage - Input (Max)-6V
Voltage - Output (Min/Fixed)nVin
Voltage - Output (Max)-
Current - Output20mA
Frequency - Switching2.5kHz
Synchronous RectifierNo
Operating Temperature-20°C ~ 75°C (TA)
Mounting TypeThrough Hole
Package / Case14-DIP
Supplier Device Package14-DIP
