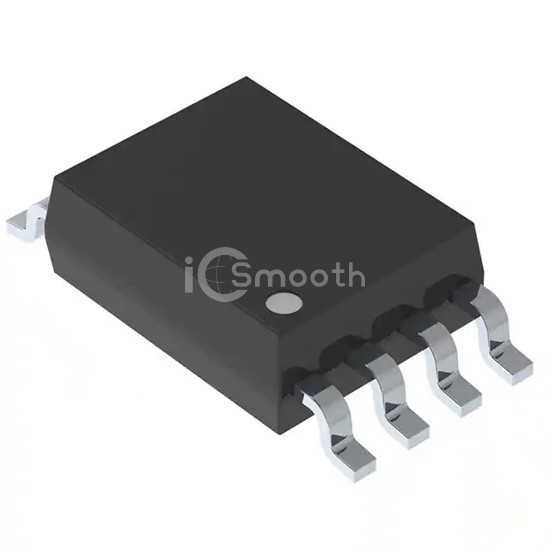

Name: NJU7043E-TE2
Brand: Nisshinbo Micro Devices Inc.
SKU: NJU7043E-TE2
Price: 1.00 USD
Availability: InStock

REF: NJU7043E-TE2 Nisshinbo Micro Devices Inc.

NJU7043E-TE2

Nisshinbo Micro Devices Inc.

IC CMOS 2 CIRCUIT 8SOP

NJU7043E-TE2 is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Nisshinbo Micro Devices Inc.. IC CMOS 2 CIRCUIT 8SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-SOIC (0.154", 3.90mm Width), current - supply 600µA.

Datasheet Request a Quote

In Stock: 6,253

Specifications

17 parameters

Product Status	Active
Amplifier Type	CMOS
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	0.7V/µs
Gain Bandwidth Product	800 kHz
-3db Bandwidth	-
Current - Input Bias	1 pA
Voltage - Input Offset	10 mV

Current - Supply	600µA
Current - Output / Channel	40 mA
Voltage - Supply Span (Min)	1.8 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOP
