Name: NJU7004M#
Brand: Nisshinbo Micro Devices Inc.
SKU: NJU7004M#
Price: 1.26 USD
Availability: InStock

REF: NJU7004M# Nisshinbo Micro Devices Inc.

NJU7004M#

Nisshinbo Micro Devices Inc.

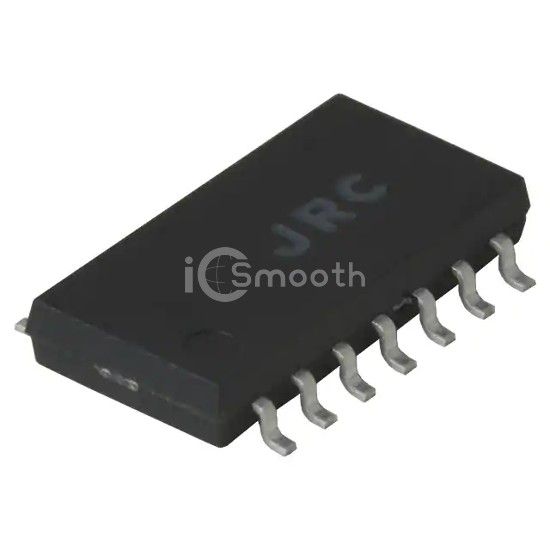

IC CMOS 4 CIRCUIT 14DMP

NJU7004M# is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Nisshinbo Micro Devices Inc.. IC CMOS 4 CIRCUIT 14DMP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 75°C, package / case 14-SOIC (0.197", 5.00mm Width), number of circuits 4.

Datasheet Request a Quote

In Stock: 7,731

Specifications

17 parameters

Product Status	Active
Amplifier Type	CMOS
Number of Circuits	4
Output Type	-
Slew Rate	0.05V/µs
Gain Bandwidth Product	100 kHz
-3db Bandwidth	-
Current - Input Bias	1 pA
Voltage - Input Offset	10 mV

Current - Supply	-
Current - Output / Channel	-
Voltage - Supply Span (Min)	1 V
Voltage - Supply Span (Max)	16 V
Operating Temperature	-20°C ~ 75°C
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.197", 5.00mm Width)
Supplier Device Package	14-DMP
