NJM8534V-TE1

In Stock: 2,241

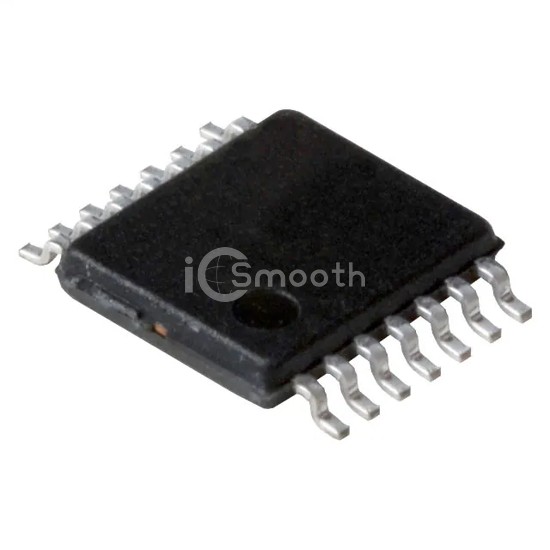

NJM8534V-TE1 - Nisshinbo Micro Devices Inc. - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
REF: NJM8534V-TE1 Nisshinbo Micro Devices Inc.
NJM8534V-TE1

Nisshinbo Micro Devices Inc.

IC OPAMP GP 4 CIRCUIT 14SSOP

NJM8534V-TE1 is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Nisshinbo Micro Devices Inc.. IC OPAMP GP 4 CIRCUIT 14SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-LSSOP (0.173", 4.40mm Width), current - supply 1.2mA.

Datasheet Request a Quote

In Stock: 2,241

Specifications

17 parameters
Product StatusActive
Amplifier TypeGeneral Purpose
Number of Circuits4
Output TypeRail-to-Rail
Slew Rate0.4V/µs
Gain Bandwidth Product1 MHz
-3db Bandwidth-
Current - Input Bias50 nA
Voltage - Input Offset1 mV
Current - Supply1.2mA
Current - Output / Channel20 mA
Voltage - Supply Span (Min)1.8 V
Voltage - Supply Span (Max)14 V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-LSSOP (0.173", 4.40mm Width)
Supplier Device Package14-SSOP
