NJM79L15UA-TE1

In Stock: 7,890

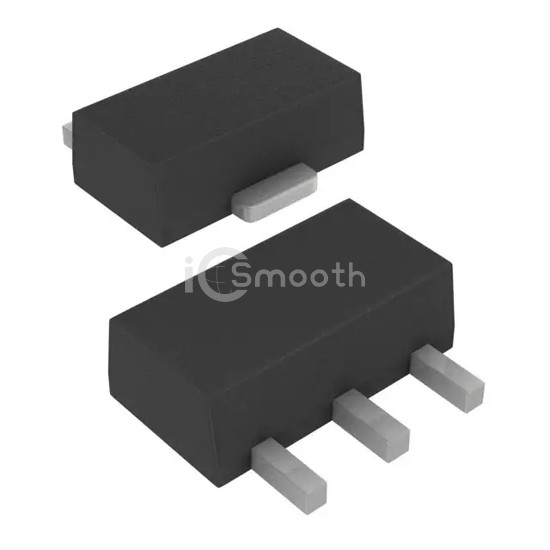

NJM79L15UA-TE1 - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - Linear
REF: NJM79L15UA-TE1 Nisshinbo Micro Devices Inc.
NJM79L15UA-TE1

Nisshinbo Micro Devices Inc.

IC REG LINEAR -15V 100MA SOT89-3

NJM79L15UA-TE1 is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR -15V 100MA SOT89-3. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case TO-243AA, current - output 100mA.

Datasheet Request a Quote

In Stock: 7,890

Tiered Pricing USD
2,000+ $0.2847 —
5,000+ $0.2651 -7%
10,000+ $0.2553 -10%
25,000+ $0.2454 -14% BEST

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationNegative
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)-35V
Voltage - Output (Min/Fixed)-15V
Voltage - Output (Max)-
Voltage Dropout (Max)-
Current - Output100mA
Current - Quiescent (Iq)6.5 mA
Current - Supply (Max)-
PSRR63dB (120Hz)
Control Features-
Protection FeaturesOver Temperature, Short Circuit
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackageSOT-89-3
