NJM79L09UA

In Stock: 8,816

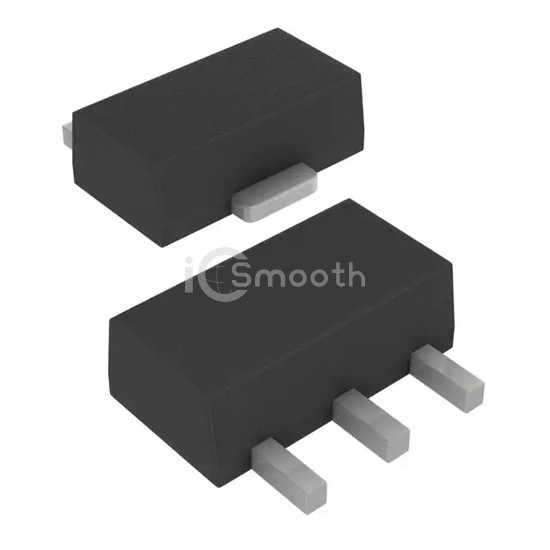

NJM79L09UA - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - Linear
REF: NJM79L09UA Nisshinbo Micro Devices Inc.
NJM79L09UA

Nisshinbo Micro Devices Inc.

IC REG LINEAR -9V 100MA SOT89-3

NJM79L09UA is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR -9V 100MA SOT89-3. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case TO-243AA, current - output 100mA.

Datasheet Request a Quote

In Stock: 8,816

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationNegative
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)-30V
Voltage - Output (Min/Fixed)-9V
Voltage - Output (Max)-
Voltage Dropout (Max)-
Current - Output100mA
Current - Quiescent (Iq)6 mA
Current - Supply (Max)-
PSRR67dB (120Hz)
Control Features-
Protection FeaturesOver Temperature, Short Circuit
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackageSOT-89-3
