NJM78L15UA-TE2

In Stock: 4,714

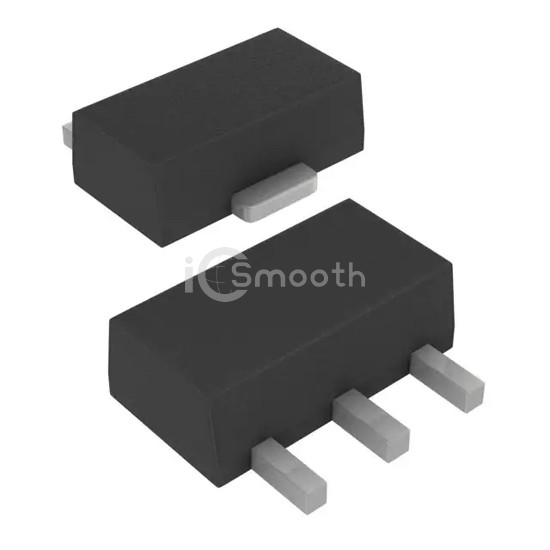

NJM78L15UA-TE2 - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - Linear
REF: NJM78L15UA-TE2 Nisshinbo Micro Devices Inc.
NJM78L15UA-TE2

Nisshinbo Micro Devices Inc.

IC REG LINEAR 15V 100MA SOT89

NJM78L15UA-TE2 is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 15V 100MA SOT89. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case TO-243AA, current - output 100mA.

Datasheet Request a Quote

In Stock: 4,714

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)35V
Voltage - Output (Min/Fixed)15V
Voltage - Output (Max)-
Voltage Dropout (Max)-
Current - Output100mA
Current - Quiescent (Iq)6.5 mA
Current - Supply (Max)-
PSRR60dB (120Hz)
Control Features-
Protection FeaturesOver Temperature, Short Circuit
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackageSOT-89
