NJM78L12SU3-TE1

In Stock: 8,637

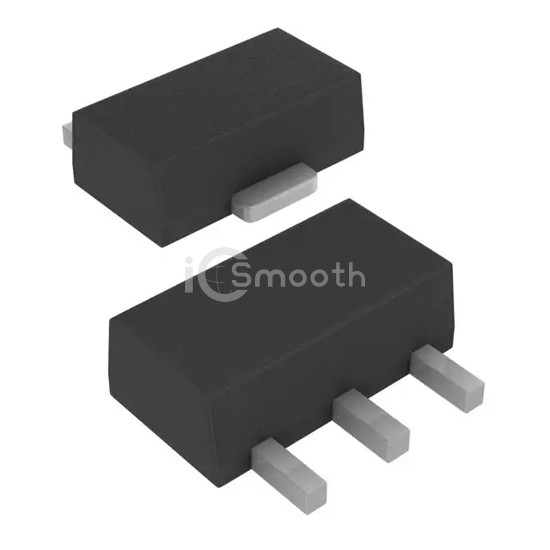

NJM78L12SU3-TE1 - Nisshinbo Micro Devices Inc. - PMIC - Voltage Regulators - Linear
REF: NJM78L12SU3-TE1 Nisshinbo Micro Devices Inc.
NJM78L12SU3-TE1

Nisshinbo Micro Devices Inc.

IC REG LINEAR 12V 100MA SOT89-3

NJM78L12SU3-TE1 is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 12V 100MA SOT89-3. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-243AA, current - output 100mA.

Datasheet Request a Quote

In Stock: 8,637

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)35V
Voltage - Output (Min/Fixed)12V
Voltage - Output (Max)-
Voltage Dropout (Max)1.7V @ 100mA
Current - Output100mA
Current - Quiescent (Iq)6.5 mA
Current - Supply (Max)-
PSRR62dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackageSOT-89-3
