NJM4741D

In Stock: 8,139

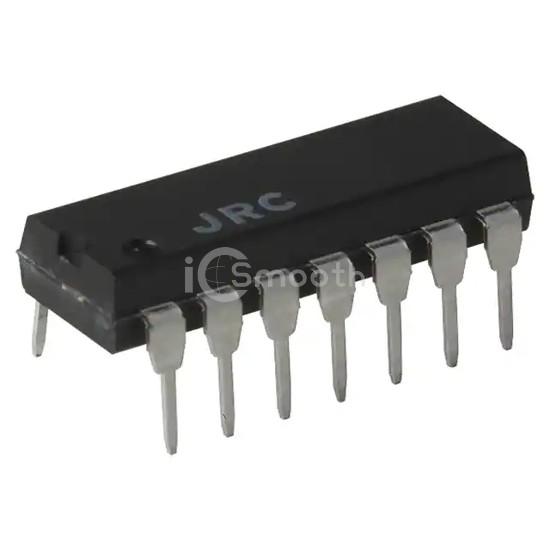

NJM4741D - Nisshinbo Micro Devices Inc. - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
REF: NJM4741D Nisshinbo Micro Devices Inc.
NJM4741D

Nisshinbo Micro Devices Inc.

IC OPAMP GP 4 CIRCUIT 14DIP

NJM4741D is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Nisshinbo Micro Devices Inc.. IC OPAMP GP 4 CIRCUIT 14DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 14-DIP (0.300", 7.62mm), current - supply 5mA.

Datasheet Request a Quote

In Stock: 8,139

Specifications

17 parameters
Product StatusObsolete
Amplifier TypeGeneral Purpose
Number of Circuits4
Output Type-
Slew Rate1.6V/µs
Gain Bandwidth Product3.5 MHz
-3db Bandwidth-
Current - Input Bias60 nA
Voltage - Input Offset1 mV
Current - Supply5mA
Current - Output / Channel-
Voltage - Supply Span (Min)8 V
Voltage - Supply Span (Max)40 V
Operating Temperature-40°C ~ 85°C
Mounting TypeThrough Hole
Package / Case14-DIP (0.300", 7.62mm)
Supplier Device Package14-DIP
