Name: NJM3774FM2-TE3
Brand: Nisshinbo Micro Devices Inc.
SKU: NJM3774FM2-TE3
Price: 3.98 USD
Availability: InStock

REF: NJM3774FM2-TE3 Nisshinbo Micro Devices Inc.

NJM3774FM2-TE3

Nisshinbo Micro Devices Inc.

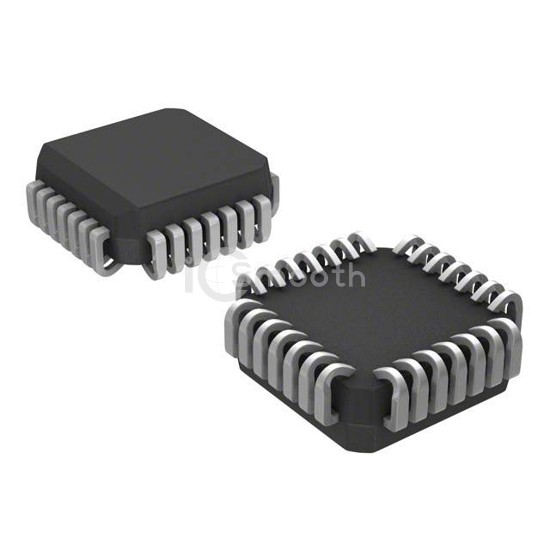

IC MOTOR DRIVER BIPOLAR 28PLCC

NJM3774FM2-TE3 is a PMIC - Motor Drivers, Controllers manufactured by Nisshinbo Micro Devices Inc.. IC MOTOR DRIVER BIPOLAR 28PLCC. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 125°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 28-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 3,507

Tiered Pricing USD

750+ $3.9836 —

1,500+ $3.3597 -16%

2,250+ $3.1917 -20% BEST

Specifications

16 parameters

Product Status	Obsolete
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	Parallel
Technology	Bipolar
Step Resolution	1, 1/2

Applications	General Purpose
Current - Output	1A
Voltage - Supply	4.75V ~ 5.25V
Voltage - Load	10V ~ 40V
Operating Temperature	-20°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	28-LCC (J-Lead)
Supplier Device Package	28-PLCC (11.51x11.51)
