Name: NJM3524M#
Brand: Nisshinbo Micro Devices Inc.
SKU: NJM3524M#
Availability: InStock

REF: NJM3524M# Nisshinbo Micro Devices Inc.

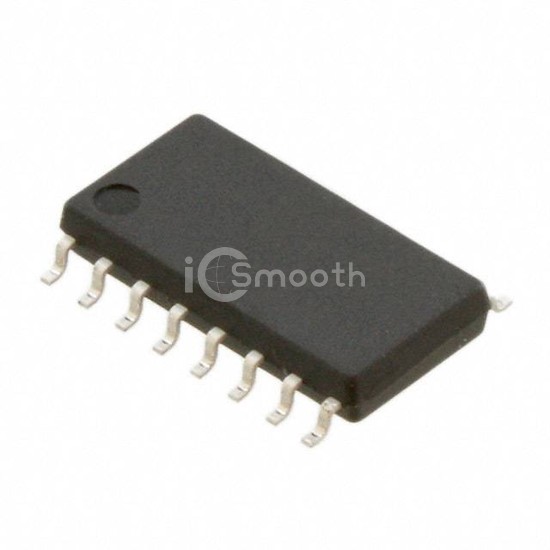

NJM3524M#

IC REG CTRLR MULT TOPOLOGY 16DMP

NJM3524M# is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Nisshinbo Micro Devices Inc.. IC REG CTRLR MULT TOPOLOGY 16DMP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 75°C (TA), voltage - supply (vcc/vdd) 8V ~ 40V, package / case 16-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 4,492

Specifications

18 parameters

Product Status	Obsolete
Output Type	Transistor Driver
Function	Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration	Positive, Isolation Capable
Topology	Buck, Boost, Flyback, Push-Pull
Number of Outputs	2
Output Phases	1
Voltage - Supply (Vcc/Vdd)	8V ~ 40V
Frequency - Switching	30kHz

Duty Cycle (Max)	45%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit
Operating Temperature	-20°C ~ 75°C (TA)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.209", 5.30mm Width)
Supplier Device Package	16-DMP
