Name: NJM3474G-TE2
Brand: Nisshinbo Micro Devices Inc.
SKU: NJM3474G-TE2
Price: 1.46 USD
Availability: InStock

REF: NJM3474G-TE2 Nisshinbo Micro Devices Inc.

NJM3474G-TE2

Nisshinbo Micro Devices Inc.

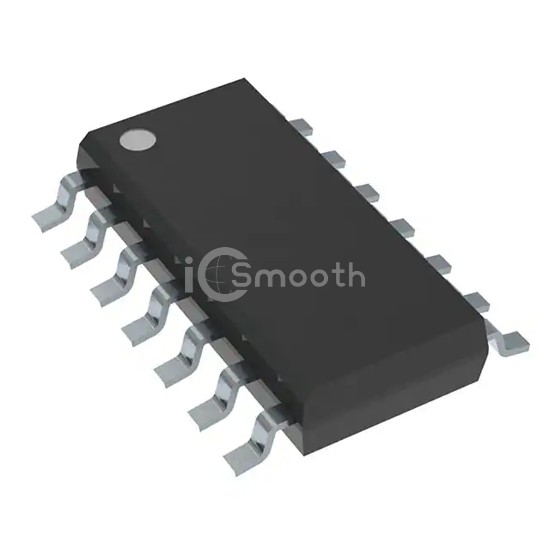

IC OPAMP GP 4 CIRCUIT 14SOP

NJM3474G-TE2 is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Nisshinbo Micro Devices Inc.. IC OPAMP GP 4 CIRCUIT 14SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-SOIC (0.154", 3.90mm Width), current - supply 8mA.

Datasheet Request a Quote

In Stock: 1,251

Specifications

17 parameters

Product Status	Active
Amplifier Type	General Purpose
Number of Circuits	4
Output Type	-
Slew Rate	10V/µs
Gain Bandwidth Product	3 MHz
-3db Bandwidth	-
Current - Input Bias	80 nA
Voltage - Input Offset	1 mV

Current - Supply	8mA
Current - Output / Channel	60 mA
Voltage - Supply Span (Min)	3 V
Voltage - Supply Span (Max)	36 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package	14-SOP
