Name: NJM2846DL3-05-TE1
Brand: Nisshinbo Micro Devices Inc.
SKU: NJM2846DL3-05-TE1
Price: 0.46 USD
Availability: InStock

REF: NJM2846DL3-05-TE1 Nisshinbo Micro Devices Inc.

NJM2846DL3-05-TE1

Nisshinbo Micro Devices Inc.

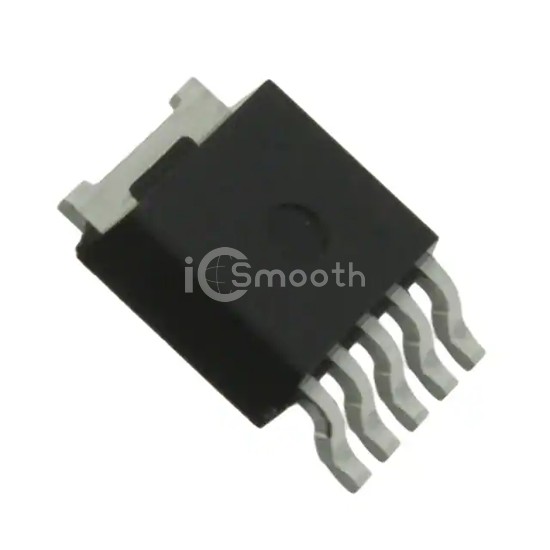

IC REG LINEAR 5V 800MA TO252-5

NJM2846DL3-05-TE1 is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 5V 800MA TO252-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case TO-252-6, DPak (5 Leads + Tab), current - output 800mA.

Datasheet Request a Quote

In Stock: 9,045

Tiered Pricing USD

3,000+ $0.4559 —

6,000+ $0.4452 -2%

9,000+ $0.4398 -4%

15,000+ $0.4338 -5%

21,000+ $0.4304 -6% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	14V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.28V @ 500mA
Current - Output	800mA

Current - Quiescent (Iq)	600 µA
Current - Supply (Max)	-
PSRR	75dB (1kHz)
Control Features	Enable
Protection Features	Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package	TO-252-5
