Name: NJM2819ADL3-05-TE1
Brand: Nisshinbo Micro Devices Inc.
SKU: NJM2819ADL3-05-TE1
Price: 0.66 USD
Availability: InStock

REF: NJM2819ADL3-05-TE1 Nisshinbo Micro Devices Inc.

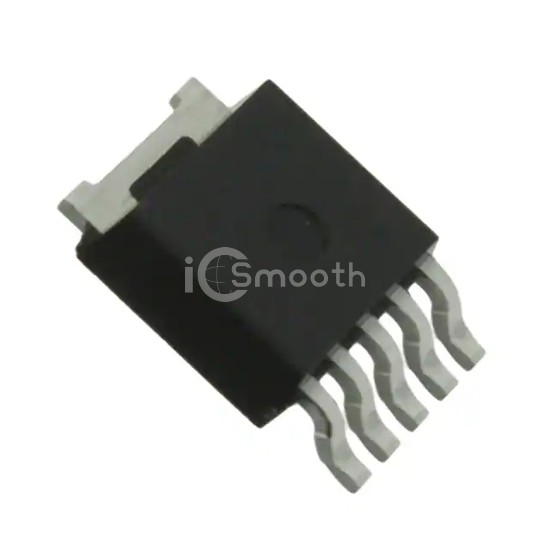

NJM2819ADL3-05-TE1

Nisshinbo Micro Devices Inc.

IC REG LINEAR 5V 2A TO252-5

NJM2819ADL3-05-TE1 is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 5V 2A TO252-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case TO-252-6, DPak (5 Leads + Tab), current - output 2A.

Datasheet Request a Quote

In Stock: 7,403

Tiered Pricing USD

3,000+ $0.6621 —

6,000+ $0.6475 -2%

9,000+ $0.6402 -3%

15,000+ $0.6321 -5% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	7V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.09V @ 1A
Current - Output	2A

Current - Quiescent (Iq)	800 µA
Current - Supply (Max)	-
PSRR	65dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package	TO-252-5
