Name: NJM2396F83
Brand: Nisshinbo Micro Devices Inc.
SKU: NJM2396F83
Availability: InStock

REF: NJM2396F83 Nisshinbo Micro Devices Inc.

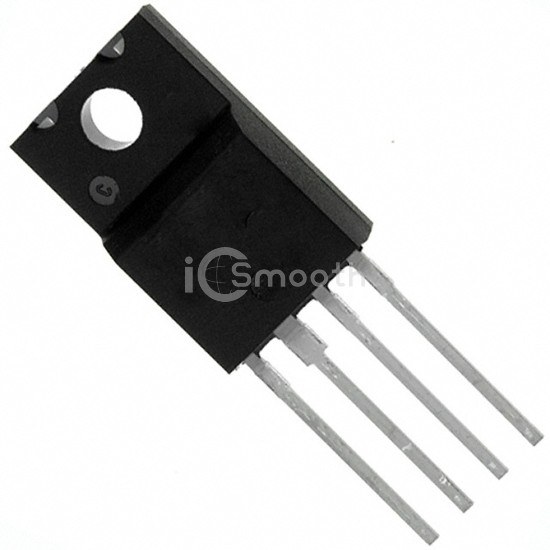

NJM2396F83

IC REG LINEAR 8.3V 1.5A TO220F-4

NJM2396F83 is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 8.3V 1.5A TO220F-4. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case TO-220-4 Full Pack, current - output 1.5A.

Datasheet Request a Quote

In Stock: 1,381

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	35V
Voltage - Output (Min/Fixed)	8.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.5V @ 500mA
Current - Output	1.5A

Current - Quiescent (Iq)	5 mA
Current - Supply (Max)	-
PSRR	58dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	TO-220-4 Full Pack
Supplier Device Package	TO-220F-4
