Name: NJM2386ADL3-09-TE1
Brand: Nisshinbo Micro Devices Inc.
SKU: NJM2386ADL3-09-TE1
Price: 0.64 USD
Availability: InStock

REF: NJM2386ADL3-09-TE1 Nisshinbo Micro Devices Inc.

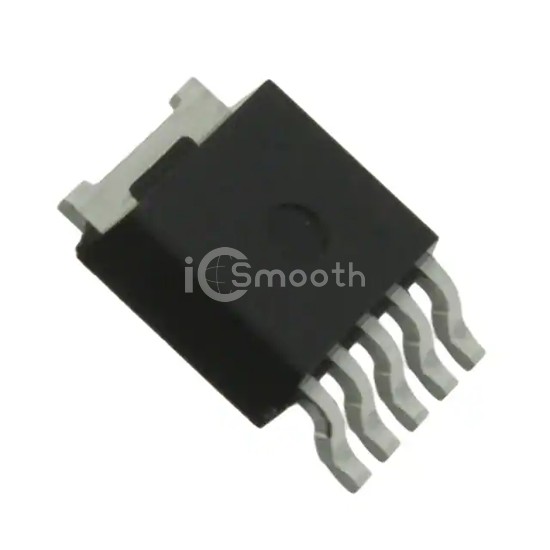

NJM2386ADL3-09-TE1

Nisshinbo Micro Devices Inc.

IC REG LINEAR 9V 1A TO252-5

NJM2386ADL3-09-TE1 is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 9V 1A TO252-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case TO-252-6, DPak (5 Leads + Tab), current - output 1A.

Datasheet Request a Quote

In Stock: 9,363

Tiered Pricing USD

3,000+ $0.6414 —

6,000+ $0.6272 -2%

9,000+ $0.6201 -3%

15,000+ $0.6122 -5% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	30V
Voltage - Output (Min/Fixed)	9V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.5V @ 500mA
Current - Output	1A

Current - Quiescent (Iq)	5 mA
Current - Supply (Max)	-
PSRR	65dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package	TO-252-5
