NJM2059M

In Stock: 6,531

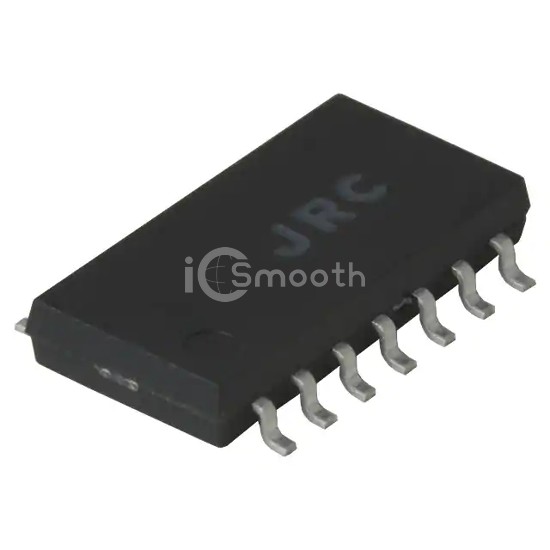

NJM2059M - Nisshinbo Micro Devices Inc. - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
REF: NJM2059M Nisshinbo Micro Devices Inc.
NJM2059M

Nisshinbo Micro Devices Inc.

IC OPAMP GP 4 CIRCUIT 14DMP

NJM2059M is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Nisshinbo Micro Devices Inc.. IC OPAMP GP 4 CIRCUIT 14DMP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 14-SOIC (0.197", 5.00mm Width), current - supply 7mA.

Datasheet Request a Quote

In Stock: 6,531

Specifications

17 parameters
Product StatusActive
Amplifier TypeGeneral Purpose
Number of Circuits4
Output Type-
Slew Rate2V/µs
Gain Bandwidth Product6 MHz
-3db Bandwidth-
Current - Input Bias20 nA
Voltage - Input Offset500 µV
Current - Supply7mA
Current - Output / Channel-
Voltage - Supply Span (Min)8 V
Voltage - Supply Span (Max)36 V
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case14-SOIC (0.197", 5.00mm Width)
Supplier Device Package14-DMP
