Name: NJM13700M
Brand: Nisshinbo Micro Devices Inc.
SKU: NJM13700M
Availability: InStock

REF: NJM13700M Nisshinbo Micro Devices Inc.

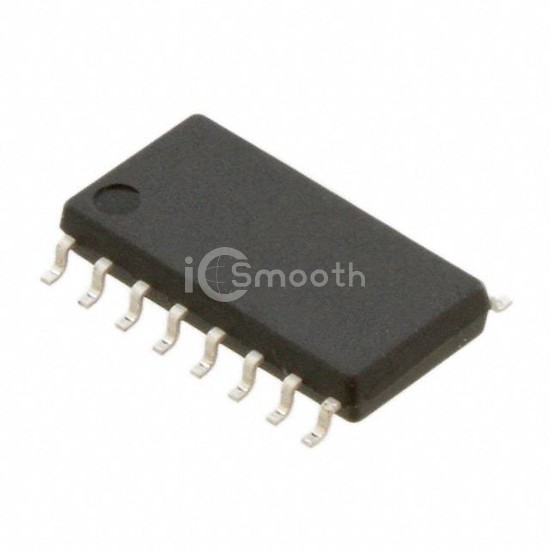

NJM13700M

IC OPAMP TRANSCOND 2 CIRC 16DMP

NJM13700M is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Nisshinbo Micro Devices Inc.. IC OPAMP TRANSCOND 2 CIRC 16DMP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-SOIC (0.209", 5.30mm Width), current - supply 2.6mA.

Datasheet Request a Quote

In Stock: 3,222

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	Transconductance
Number of Circuits	2
Output Type	Push-Pull
Slew Rate	50V/µs
Gain Bandwidth Product	2 MHz
-3db Bandwidth	-
Current - Input Bias	400 nA
Voltage - Input Offset	400 µV

Current - Supply	2.6mA
Current - Output / Channel	500 µA
Voltage - Supply Span (Min)	36 V
Voltage - Supply Span (Max)	36 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.209", 5.30mm Width)
Supplier Device Package	16-DMP
