Name: NJM12856DL3-33-TE1
Brand: Nisshinbo Micro Devices Inc.
SKU: NJM12856DL3-33-TE1
Price: 1.27 USD
Availability: InStock

REF: NJM12856DL3-33-TE1 Nisshinbo Micro Devices Inc.

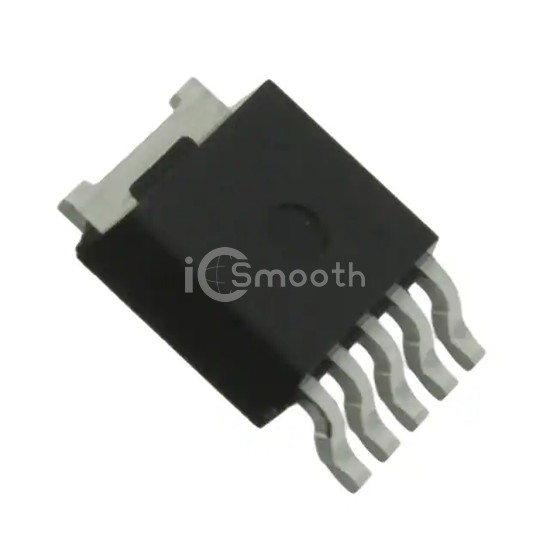

NJM12856DL3-33-TE1

Nisshinbo Micro Devices Inc.

IC REG LINEAR 3.3V 1A TO252-5

NJM12856DL3-33-TE1 is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 3.3V 1A TO252-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-252-6, DPak (5 Leads + Tab), current - output 1A.

Datasheet Request a Quote

In Stock: 5,647

Tiered Pricing USD

1+ $1.2700 —

10+ $0.9210 -27%

25+ $0.8340 -34%

100+ $0.7382 -42%

250+ $0.6924 -45%

500+ $0.6649 -48%

1,000+ $0.6422 -49% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	6.5V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.2V @ 600mA
Current - Output	1A

Current - Quiescent (Iq)	600 µA
Current - Supply (Max)	-
PSRR	72dB (1kHz)
Control Features	Enable, Soft Start
Protection Features	Over Current, Over Temperature, Reverse Current
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package	TO-252-5
