NJG1809ME7-TE1

In Stock: 7,393

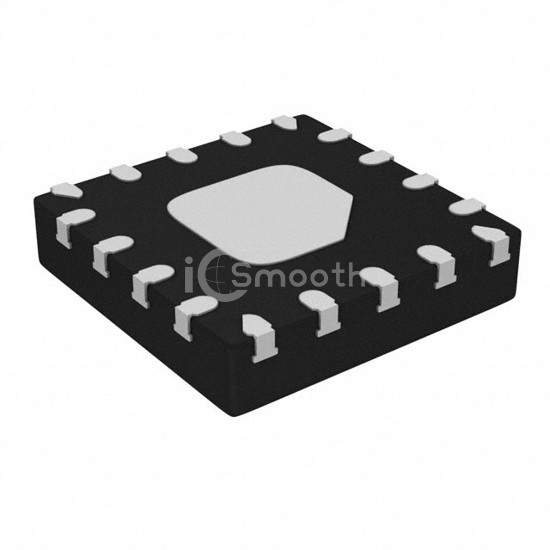

NJG1809ME7-TE1 - Nisshinbo Micro Devices Inc. - RF Switches
REF: NJG1809ME7-TE1 Nisshinbo Micro Devices Inc.
NJG1809ME7-TE1

Nisshinbo Micro Devices Inc.

HIGH POWERSP4T SWITCH GAAS MMIC

NJG1809ME7-TE1 is a RF Switches manufactured by Nisshinbo Micro Devices Inc.. HIGH POWERSP4T SWITCH GAAS MMIC. Key specifications: operating temperature -40°C ~ 105°C, voltage - supply 2.5V ~ 5V, package / case 18-XFQFN Exposed Pad, frequency range 6GHz.

Datasheet Request a Quote

In Stock: 7,393

Specifications

16 parameters
Product StatusActive
RF Type802.11a/b/g/n/ac, LTE, WLAN
Topology-
CircuitSP4T
Frequency Range6GHz
Isolation23dB
Insertion Loss0.5dB
Test Frequency5.85GHz
P1dB-
IIP360dBm
FeaturesDC Blocked
Impedance50Ohm
Voltage - Supply2.5V ~ 5V
Operating Temperature-40°C ~ 105°C
Package / Case18-XFQFN Exposed Pad
Supplier Device Package18-EQFN (2x2)
