NJG1806K75-TE1

In Stock: 3,885

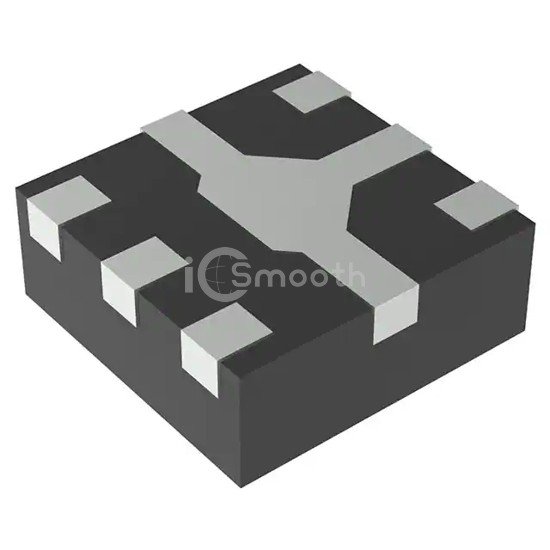

NJG1806K75-TE1 - Nisshinbo Micro Devices Inc. - RF Switches
REF: NJG1806K75-TE1 Nisshinbo Micro Devices Inc.
NJG1806K75-TE1

Nisshinbo Micro Devices Inc.

SPDTSWITCH GAAS MMIC

NJG1806K75-TE1 is a RF Switches manufactured by Nisshinbo Micro Devices Inc.. SPDTSWITCH GAAS MMIC. Key specifications: operating temperature -40°C ~ 105°C, voltage - supply 2.5V ~ 5V, package / case 6-XFDFN Exposed Pad, frequency range 6GHz.

Datasheet Request a Quote

In Stock: 3,885

Specifications

16 parameters
Product StatusActive
RF Type802.11a/b/g/n/ac/ax, LTE, WLAN
Topology-
CircuitSPDT
Frequency Range6GHz
Isolation25dB
Insertion Loss0.4dB
Test Frequency5.9GHz
P1dB31dBm
IIP3-
Features-
Impedance50Ohm
Voltage - Supply2.5V ~ 5V
Operating Temperature-40°C ~ 105°C
Package / Case6-XFDFN Exposed Pad
Supplier Device Package6-DFN (1x1)
