NJG1681MD7-TE1

In Stock: 7,570

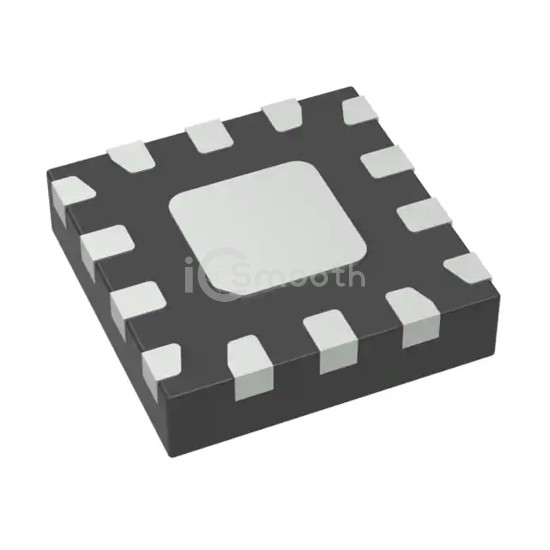

NJG1681MD7-TE1 - Nisshinbo Micro Devices Inc. - RF Switches
REF: NJG1681MD7-TE1 Nisshinbo Micro Devices Inc.
NJG1681MD7-TE1

Nisshinbo Micro Devices Inc.

HIGH POWER SPDT SWITCH GAAS MMIC

NJG1681MD7-TE1 is a RF Switches manufactured by Nisshinbo Micro Devices Inc.. HIGH POWER SPDT SWITCH GAAS MMIC. Key specifications: operating temperature -40°C ~ 105°C, voltage - supply 2.375V ~ 5V, package / case 14-XFQFN Exposed Pad, frequency range 6GHz.

Datasheet Request a Quote

In Stock: 7,570

Specifications

16 parameters
Product StatusActive
RF Type802.11p, CDMA, GSM, LTE, UMTS
Topology-
CircuitSPDT
Frequency Range6GHz
Isolation20dB
Insertion Loss0.45dB
Test Frequency6GHz
P1dB-
IIP373dBm
FeaturesDC Blocked
Impedance50Ohm
Voltage - Supply2.375V ~ 5V
Operating Temperature-40°C ~ 105°C
Package / Case14-XFQFN Exposed Pad
Supplier Device Package14-EQFN (1.6x1.6)
