NJG1528KC1-TE3

In Stock: 3,778

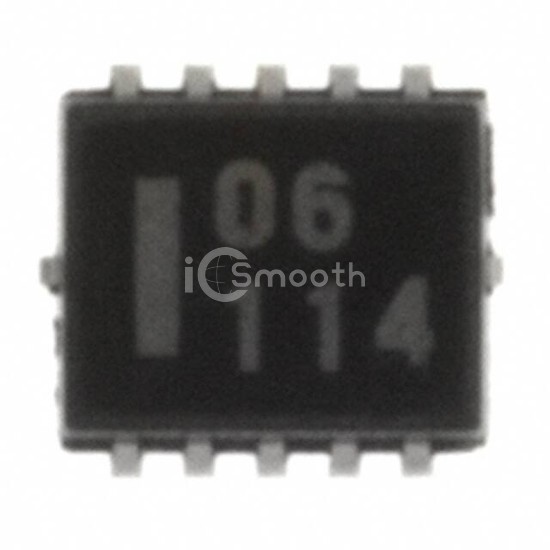

NJG1528KC1-TE3 - Nisshinbo Micro Devices Inc. - RF Switches
REF: NJG1528KC1-TE3 Nisshinbo Micro Devices Inc.
NJG1528KC1-TE3

Nisshinbo Micro Devices Inc.

IC RF SWITCH DPDT 2.5GHZ 10FLP

NJG1528KC1-TE3 is a RF Switches manufactured by Nisshinbo Micro Devices Inc.. IC RF SWITCH DPDT 2.5GHZ 10FLP. Key specifications: operating temperature -40°C ~ 85°C, package / case 10-SMD, Flat Lead, frequency range 0Hz ~ 2.5GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 3,778

Specifications

16 parameters
Product StatusObsolete
RF TypeCellular, AMPS, GSM, CDMA, TDMA
TopologyReflective
CircuitDPDT
Frequency Range0Hz ~ 2.5GHz
Isolation18dB
Insertion Loss0.7dB
Test Frequency1.9GHz
P1dB-
IIP360dBm
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-40°C ~ 85°C
Package / Case10-SMD, Flat Lead
Supplier Device Package10-FLP
