NJG1524APC1-TE1

In Stock: 6,183

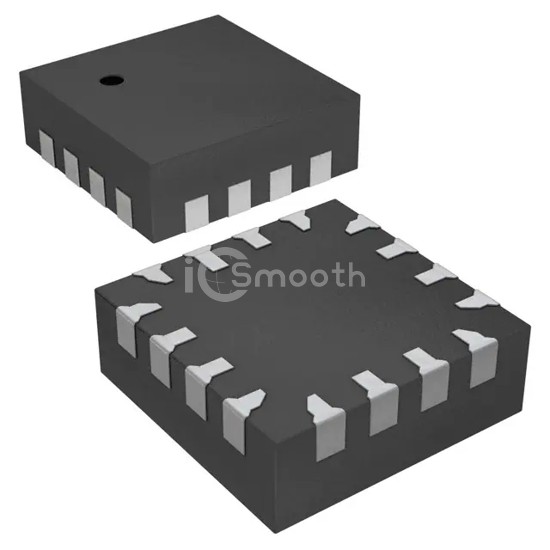

NJG1524APC1-TE1 - Nisshinbo Micro Devices Inc. - RF Switches
REF: NJG1524APC1-TE1 Nisshinbo Micro Devices Inc.
NJG1524APC1-TE1

Nisshinbo Micro Devices Inc.

IC RF SWITCH DPDT 3GHZ 16FFP-C1

NJG1524APC1-TE1 is a RF Switches manufactured by Nisshinbo Micro Devices Inc.. IC RF SWITCH DPDT 3GHZ 16FFP-C1. Key specifications: operating temperature -40°C ~ 85°C, package / case 16-FFP, frequency range 50MHz ~ 3GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 6,183

Specifications

16 parameters
Product StatusObsolete
RF TypeGSM
TopologyReflective
CircuitDPDT
Frequency Range50MHz ~ 3GHz
Isolation27dB
Insertion Loss0.5dB
Test Frequency2GHz
P1dB23dBm
IIP3-
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-40°C ~ 85°C
Package / Case16-FFP
Supplier Device Package16-FFP-C1 (2.5x2.5)
