NJG1522KB2-TE1

In Stock: 2,573

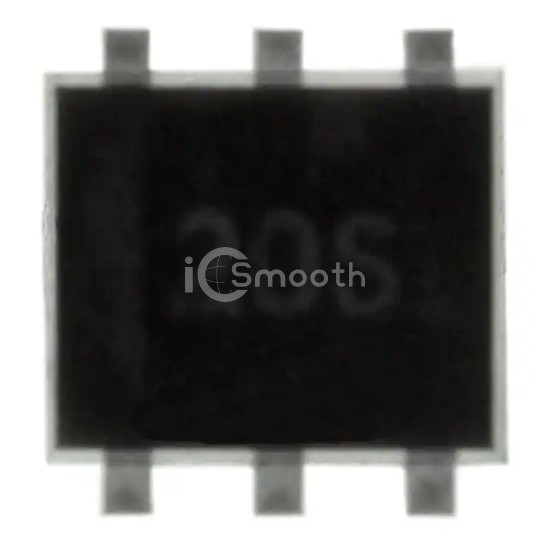

NJG1522KB2-TE1 - Nisshinbo Micro Devices Inc. - RF Switches
REF: NJG1522KB2-TE1 Nisshinbo Micro Devices Inc.
NJG1522KB2-TE1

Nisshinbo Micro Devices Inc.

IC RF SWITCH SPDT 3GHZ 6FLP-B2

NJG1522KB2-TE1 is a RF Switches manufactured by Nisshinbo Micro Devices Inc.. IC RF SWITCH SPDT 3GHZ 6FLP-B2. Key specifications: operating temperature -30°C ~ 85°C, package / case 6-SMD, Flat Leads, frequency range 50MHz ~ 3GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 2,573

Specifications

16 parameters
Product StatusObsolete
RF TypeGSM
TopologyAbsorptive
CircuitSPDT
Frequency Range50MHz ~ 3GHz
Isolation27dB
Insertion Loss0.5dB
Test Frequency2GHz
P1dB24dBm
IIP3-
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-30°C ~ 85°C
Package / Case6-SMD, Flat Leads
Supplier Device Package6-FLP-B2
