NJG1505R-TE1

In Stock: 8,638
NJG1505R-TE1 - Nisshinbo Micro Devices Inc. - RF Switches
REF: NJG1505R-TE1 Nisshinbo Micro Devices Inc.
NJG1505R-TE1

Nisshinbo Micro Devices Inc.

IC RF SWITCH SPDT 3GHZ 8VSP

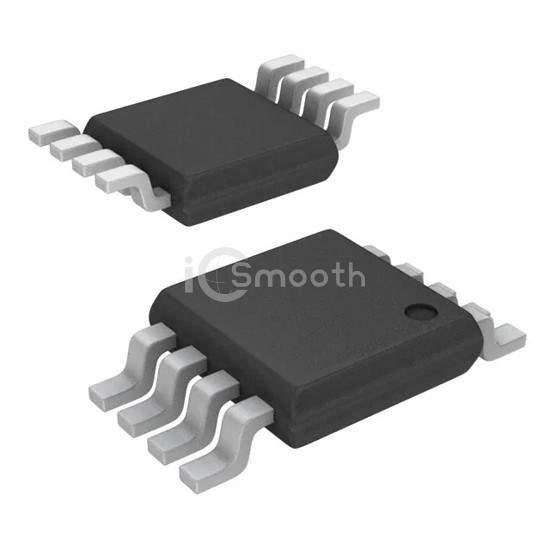

NJG1505R-TE1 is a RF Switches manufactured by Nisshinbo Micro Devices Inc.. IC RF SWITCH SPDT 3GHZ 8VSP. Key specifications: operating temperature -30°C ~ 85°C, voltage - supply 2.5V ~ 5.5V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), frequency range 1MHz ~ 3GHz.

Datasheet Request a Quote

In Stock: 8,638

Tiered Pricing USD
2,000+ $1.1837 —
4,000+ $1.1578 -2%
6,000+ $1.1447 -3% BEST

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyReflective
CircuitSPDT
Frequency Range1MHz ~ 3GHz
Isolation37dB
Insertion Loss0.8dB
Test Frequency2GHz
P1dB22dBm
IIP3-
Features-
Impedance50Ohm
Voltage - Supply2.5V ~ 5.5V
Operating Temperature-30°C ~ 85°C
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package8-VSP
