NJG1161PCD-TE1

In Stock: 1,384

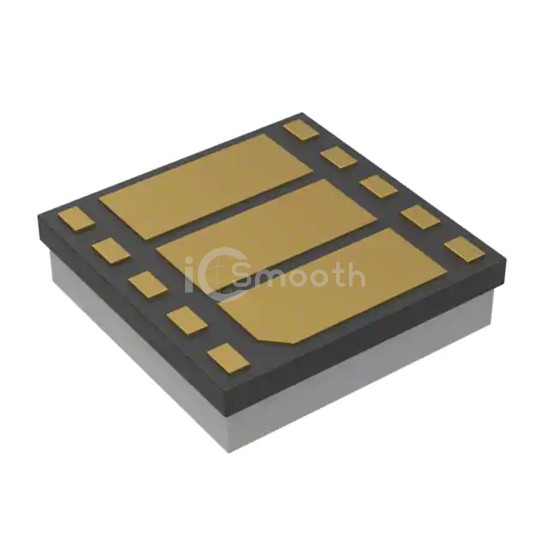

NJG1161PCD-TE1 - Nisshinbo Micro Devices Inc. - RF Amplifiers
REF: NJG1161PCD-TE1 Nisshinbo Micro Devices Inc.
NJG1161PCD-TE1

Nisshinbo Micro Devices Inc.

1.5GHZ GPS AND GLONASS FEM

NJG1161PCD-TE1 is a RF Amplifiers manufactured by Nisshinbo Micro Devices Inc.. 1.5GHZ GPS AND GLONASS FEM. Key specifications: mounting type Surface Mount, voltage - supply 1.5V ~ 3.3V, package / case 10-UFDFN Exposed Pad, current - supply 4.6mA.

Datasheet Request a Quote

In Stock: 1,384

Specifications

12 parameters
Product StatusActive
Frequency1.597GHz ~ 1.606GHz, 1.575GHz
P1dB-15dBm
Gain18.5dB
Noise Figure1.7dB
RF TypeGLONASS, GPS
Voltage - Supply1.5V ~ 3.3V
Current - Supply4.6mA
Test Frequency1.575GHz, 1.597GHz ~ 1.606GHz
Mounting TypeSurface Mount
Package / Case10-UFDFN Exposed Pad
Supplier Device Package10-HFFP (2.5x2.5)
