XC7WH14DC,125

In Stock: 78

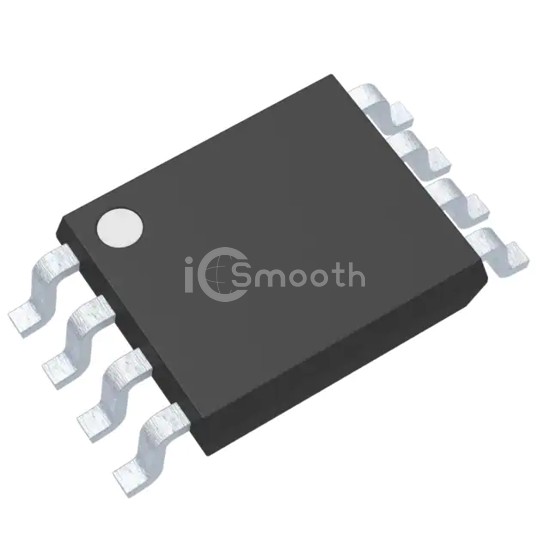

XC7WH14DC,125 - Nexperia USA Inc. - Logic - Gates and Inverters
REF: XC7WH14DC,125 Nexperia USA Inc.
XC7WH14DC,125

Nexperia USA Inc.

IC INVERT SCHMITT 3CH 3IN 8VSSOP

XC7WH14DC,125 is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC INVERT SCHMITT 3CH 3IN 8VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 8-VFSOP (0.091", 2.30mm Width).

Datasheet Request a Quote

In Stock: 78

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits3
Number of Inputs3
FeaturesSchmitt Trigger
Voltage - Supply2V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low8mA, 8mA
Logic Level - Low0.9V ~ 1.65V
Logic Level - High2.2V ~ 3.85V
Max Propagation Delay @ V, Max CL10.6ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package8-VSSOP
Package / Case8-VFSOP (0.091", 2.30mm Width)
