TDZ5V6J/ZLX

In Stock: 5,627

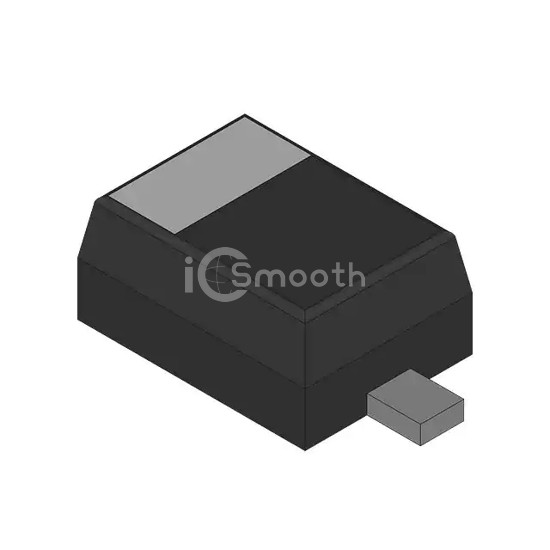

TDZ5V6J/ZLX - Nexperia USA Inc. - Diodes - Zener - Single
REF: TDZ5V6J/ZLX Nexperia USA Inc.
TDZ5V6J/ZLX

Nexperia USA Inc.

TDZ5V6J - GENERAL-PURPOSE ZENER

TDZ5V6J/ZLX is a Diodes - Zener - Single manufactured by Nexperia USA Inc.. TDZ5V6J - GENERAL-PURPOSE ZENER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case SC-90, SOD-323F, power - max 500 mW.

Datasheet Request a Quote

In Stock: 5,627

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)5.6 V
Tolerance±2%
Power - Max500 mW
Impedance (Max) (Zzt)40 Ohms
Current - Reverse Leakage @ Vr10 µA @ 2.5 V
Voltage - Forward (Vf) (Max) @ If1.1 V @ 100 mA
Operating Temperature-55°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseSC-90, SOD-323F
Supplier Device PackageSOD-323F
