SZMM5Z36VT5GF

In Stock: 8,909

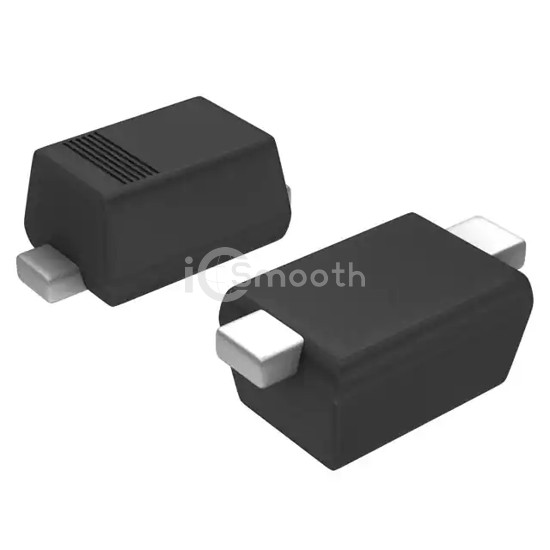

SZMM5Z36VT5GF - Nexperia USA Inc. - Diodes - Zener - Single
REF: SZMM5Z36VT5GF Nexperia USA Inc.
SZMM5Z36VT5GF

Nexperia USA Inc.

SZMM5Z36VT5G/SOD523/SC-79

SZMM5Z36VT5GF is a Diodes - Zener - Single manufactured by Nexperia USA Inc.. SZMM5Z36VT5G/SOD523/SC-79. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-79, SOD-523, power - max 300 mW.

Datasheet Request a Quote

In Stock: 8,909

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)36 V
Tolerance±2%
Power - Max300 mW
Impedance (Max) (Zzt)90 Ohms
Current - Reverse Leakage @ Vr50 nA @ 25.2 V
Voltage - Forward (Vf) (Max) @ If1.1 V @ 100 mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-79, SOD-523
Supplier Device PackageSOD-523
