PZU5.6B/ZLF

In Stock: 8,546

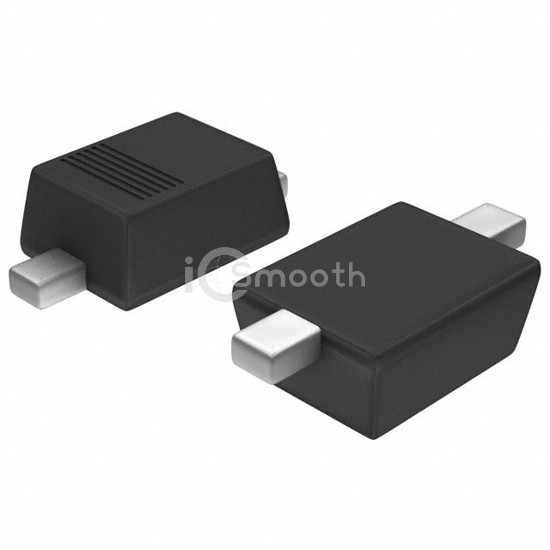

PZU5.6B/ZLF - Nexperia USA Inc. - Diodes - Zener - Single
REF: PZU5.6B/ZLF Nexperia USA Inc.
PZU5.6B/ZLF

Nexperia USA Inc.

DIODE ZENER 5.6V 310MW SC90

PZU5.6B/ZLF is a Diodes - Zener - Single manufactured by Nexperia USA Inc.. DIODE ZENER 5.6V 310MW SC90. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-90, SOD-323F, power - max 310 mW.

Datasheet Request a Quote

In Stock: 8,546

Specifications

11 parameters
Product StatusObsolete
Voltage - Zener (Nom) (Vz)5.6 V
Tolerance±5%
Power - Max310 mW
Impedance (Max) (Zzt)40 Ohms
Current - Reverse Leakage @ Vr1 µA @ 2.5 V
Voltage - Forward (Vf) (Max) @ If1.1 V @ 100 mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-90, SOD-323F
Supplier Device PackageSOD-323F
