PZU22B2A,115

In Stock: 4,531

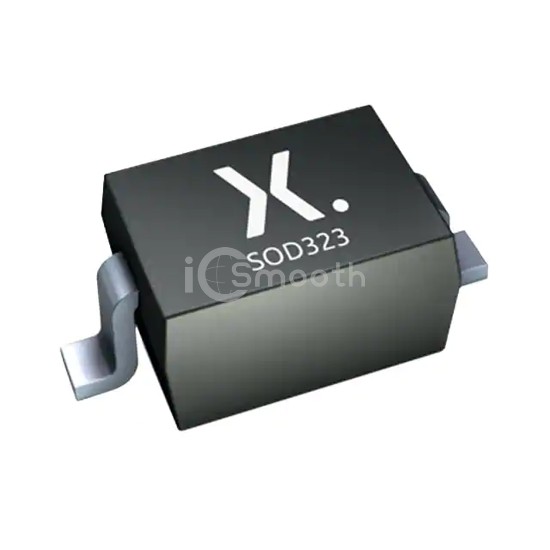

PZU22B2A,115 - Nexperia USA Inc. - Diodes - Zener - Single
REF: PZU22B2A,115 Nexperia USA Inc.
PZU22B2A,115

Nexperia USA Inc.

DIODE ZENER 22V 320MW SOD323

PZU22B2A,115 is a Diodes - Zener - Single manufactured by Nexperia USA Inc.. DIODE ZENER 22V 320MW SOD323. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case SC-76, SOD-323, power - max 320 mW.

Datasheet Request a Quote

In Stock: 4,531

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)22 V
Tolerance±2%
Power - Max320 mW
Impedance (Max) (Zzt)25 Ohms
Current - Reverse Leakage @ Vr50 nA @ 17 V
Voltage - Forward (Vf) (Max) @ If1.1 V @ 100 mA
Operating Temperature-55°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
