PQMH10Z

In Stock: 1

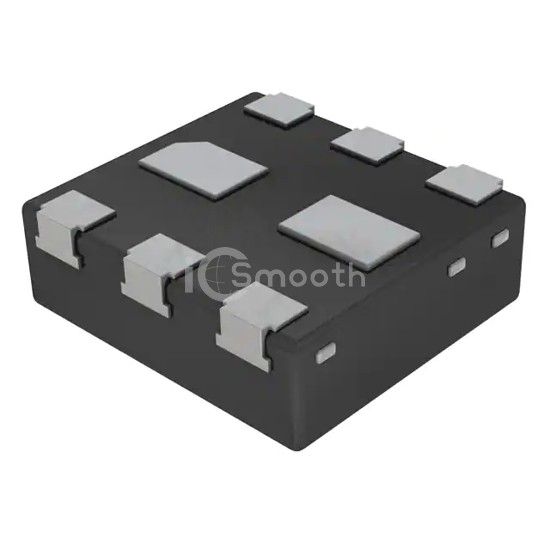

PQMH10Z - Nexperia USA Inc. - Transistors - Bipolar (BJT) - Arrays, Pre-Biased
REF: PQMH10Z Nexperia USA Inc.
PQMH10Z

Nexperia USA Inc.

TRANS PREBIAS 2NPN DFN1010B-6

PQMH10Z is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by Nexperia USA Inc.. TRANS PREBIAS 2NPN DFN1010B-6. Key specifications: mounting type Surface Mount, package / case 6-XFDFN Exposed Pad, current - collector (ic) (max) 100mA, power - max 350mW.

Datasheet Request a Quote

In Stock: 1

Specifications

14 parameters
Product StatusActive
Transistor Type2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)2.2kOhms
Resistor - Emitter Base (R2)47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic100mV @ 250µA, 5mA
Current - Collector Cutoff (Max)1µA
Frequency - Transition230MHz
Power - Max350mW
Mounting TypeSurface Mount
Package / Case6-XFDFN Exposed Pad
Supplier Device PackageDFN1010B-6
