PMEG4005EH,115

In Stock: 19,777

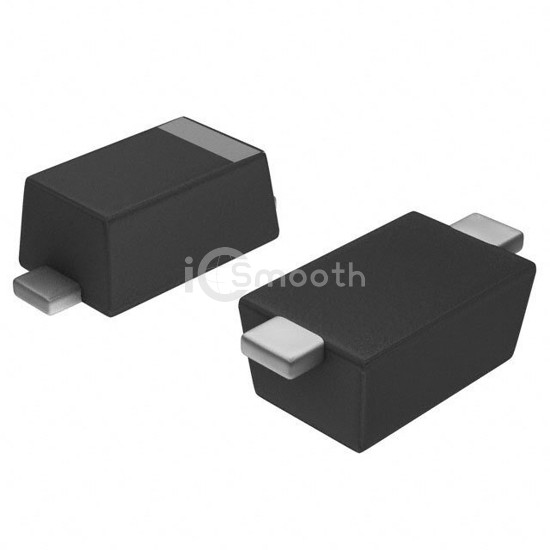

PMEG4005EH,115 - Nexperia USA Inc. - Diodes - Rectifiers - Single
REF: PMEG4005EH,115 Nexperia USA Inc.
PMEG4005EH,115

Nexperia USA Inc.

DIODE SCHOTTKY 40V 500MA SOD123F

PMEG4005EH,115 is a Diodes - Rectifiers - Single manufactured by Nexperia USA Inc.. DIODE SCHOTTKY 40V 500MA SOD123F. Key specifications: mounting type Surface Mount, package / case SOD-123F.

Datasheet Request a Quote

In Stock: 19,777

Tiered Pricing USD
3,000+ $0.0990 —
6,000+ $0.0898 -9%
9,000+ $0.0851 -14%
15,000+ $0.0798 -19%
21,000+ $0.0767 -23%
30,000+ $0.0736 -26%
75,000+ $0.0670 -32%
150,000+ $0.0661 -33% BEST

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)40 V
Current - Average Rectified (Io)500mA (DC)
Voltage - Forward (Vf) (Max) @ If470 mV @ 500 mA
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr100 µA @ 40 V
Capacitance @ Vr, F50pF @ 1V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-123F
Supplier Device PackageSOD-123F
Operating Temperature - Junction150°C (Max)
