PMEG3020BER,115

In Stock: 4,808

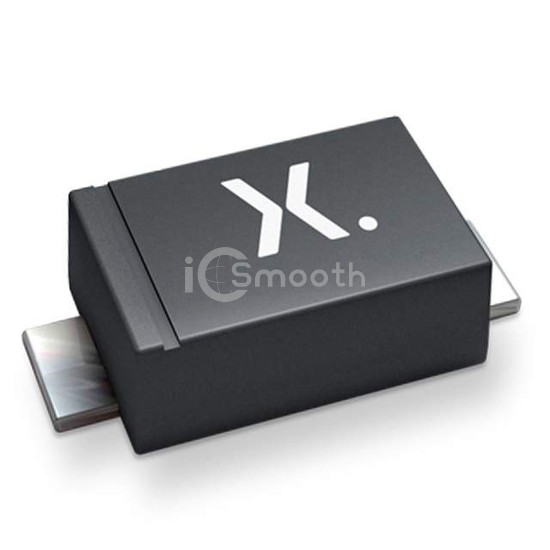

PMEG3020BER,115 - Nexperia USA Inc. - Diodes - Rectifiers - Single
REF: PMEG3020BER,115 Nexperia USA Inc.
PMEG3020BER,115

Nexperia USA Inc.

DIODE SCHOTTKY 30V 2A SOD123W

PMEG3020BER,115 is a Diodes - Rectifiers - Single manufactured by Nexperia USA Inc.. DIODE SCHOTTKY 30V 2A SOD123W. Key specifications: mounting type Surface Mount, package / case SOD-123W.

Datasheet Request a Quote

In Stock: 4,808

Tiered Pricing USD
3,000+ $0.1394 —
6,000+ $0.1272 -9%
9,000+ $0.1210 -13%
15,000+ $0.1140 -18%
21,000+ $0.1099 -21%
30,000+ $0.1059 -24%
75,000+ $0.1010 -28% BEST

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)2A
Voltage - Forward (Vf) (Max) @ If520 mV @ 2 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr50 µA @ 30 V
Capacitance @ Vr, F170pF @ 1V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-123W
Supplier Device PackageSOD-123W
Operating Temperature - Junction150°C (Max)
