PMEG2020EH,115

In Stock: 5,248

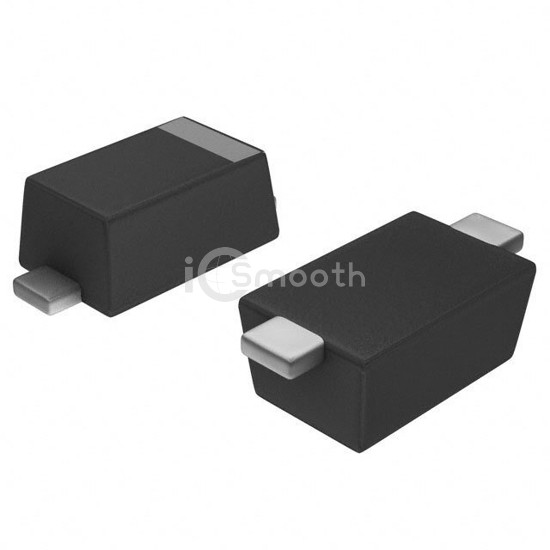

PMEG2020EH,115 - Nexperia USA Inc. - Diodes - Rectifiers - Single
REF: PMEG2020EH,115 Nexperia USA Inc.
PMEG2020EH,115

Nexperia USA Inc.

DIODE SCHOTTKY 20V 2A SOD123F

PMEG2020EH,115 is a Diodes - Rectifiers - Single manufactured by Nexperia USA Inc.. DIODE SCHOTTKY 20V 2A SOD123F. Key specifications: mounting type Surface Mount, package / case SOD-123F.

Datasheet Request a Quote

In Stock: 5,248

Tiered Pricing USD
3,000+ $0.1232 —
6,000+ $0.1122 -9%
9,000+ $0.1066 -14%
15,000+ $0.1003 -19%
21,000+ $0.0965 -22%
30,000+ $0.0929 -25%
75,000+ $0.0868 -30% BEST

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)2A (DC)
Voltage - Forward (Vf) (Max) @ If525 mV @ 2 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr200 µA @ 20 V
Capacitance @ Vr, F60pF @ 5V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-123F
Supplier Device PackageSOD-123F
Operating Temperature - Junction150°C (Max)
