PMEG1020EH,115

In Stock: 11,182

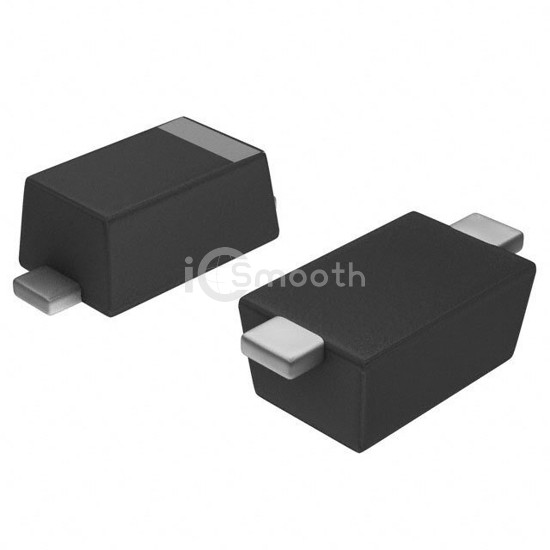

PMEG1020EH,115 - Nexperia USA Inc. - Diodes - Rectifiers - Single
REF: PMEG1020EH,115 Nexperia USA Inc.
PMEG1020EH,115

Nexperia USA Inc.

DIODE SCHOTTKY 10V 2A SOD123F

PMEG1020EH,115 is a Diodes - Rectifiers - Single manufactured by Nexperia USA Inc.. DIODE SCHOTTKY 10V 2A SOD123F. Key specifications: mounting type Surface Mount, package / case SOD-123F.

Datasheet Request a Quote

In Stock: 11,182

Tiered Pricing USD
3,000+ $0.1164 —
6,000+ $0.1059 -9%
9,000+ $0.1005 -14%
15,000+ $0.0945 -19%
21,000+ $0.0909 -22%
30,000+ $0.0875 -25%
75,000+ $0.0809 -31% BEST

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)10 V
Current - Average Rectified (Io)2A (DC)
Voltage - Forward (Vf) (Max) @ If460 mV @ 2 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr3 mA @ 10 V
Capacitance @ Vr, F50pF @ 5V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-123F
Supplier Device PackageSOD-123F
Operating Temperature - Junction150°C (Max)
