PMBT3904MB,315

In Stock: 9,780

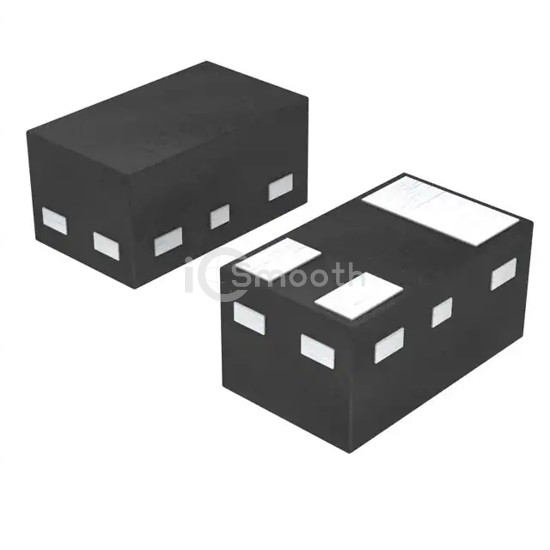

PMBT3904MB,315 - Nexperia USA Inc. - Transistors - Bipolar (BJT) - Single
REF: PMBT3904MB,315 Nexperia USA Inc.
PMBT3904MB,315

Nexperia USA Inc.

TRANS NPN 40V 0.2A DFN1006B-3

PMBT3904MB,315 is a Transistors - Bipolar (BJT) - Single manufactured by Nexperia USA Inc.. TRANS NPN 40V 0.2A DFN1006B-3. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 3-XFDFN, current - collector (ic) (max) 200 mA.

Datasheet Request a Quote

In Stock: 9,780

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)200 mA
Voltage - Collector Emitter Breakdown (Max)40 V
Vce Saturation (Max) @ Ib, Ic200mV @ 1mA, 10mA
Current - Collector Cutoff (Max)500nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 10mA, 1V
Power - Max250 mW
Frequency - Transition300MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case3-XFDFN
Supplier Device PackageDFN1006B-3
