PIMN32X

In Stock: 2,458

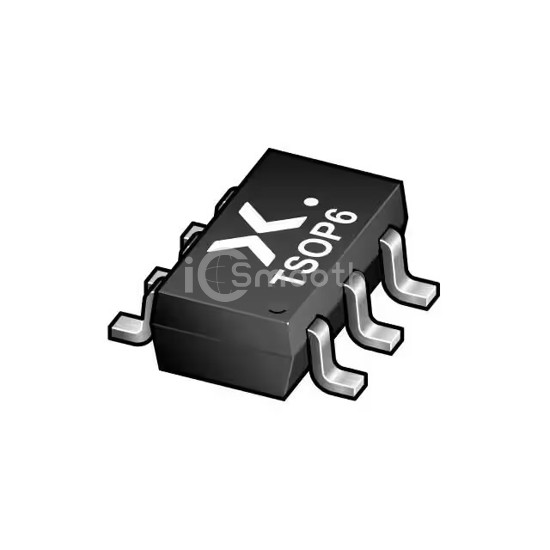

PIMN32X - Nexperia USA Inc. - Transistors - Bipolar (BJT) - Arrays, Pre-Biased
REF: PIMN32X Nexperia USA Inc.
PIMN32X

Nexperia USA Inc.

TRANS PREBIAS 2NPN 50V 6TSOP

PIMN32X is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by Nexperia USA Inc.. TRANS PREBIAS 2NPN 50V 6TSOP. Key specifications: mounting type Surface Mount, package / case SC-74, SOT-457, current - collector (ic) (max) 500mA, power - max 290mW.

Datasheet Request a Quote

In Stock: 2,458

Specifications

14 parameters
Product StatusActive
Transistor Type2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max)500mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)2.2kOhms
Resistor - Emitter Base (R2)10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce70 @ 50mA, 5V
Vce Saturation (Max) @ Ib, Ic100mV @ 2.5mA, 50mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition225MHz
Power - Max290mW
Mounting TypeSurface Mount
Package / CaseSC-74, SOT-457
Supplier Device Package6-TSOP
