Name: PESD5V0S1BAF
Brand: Nexperia USA Inc.
SKU: PESD5V0S1BAF
Price: 0.41 USD
Availability: InStock

REF: PESD5V0S1BAF Nexperia USA Inc.

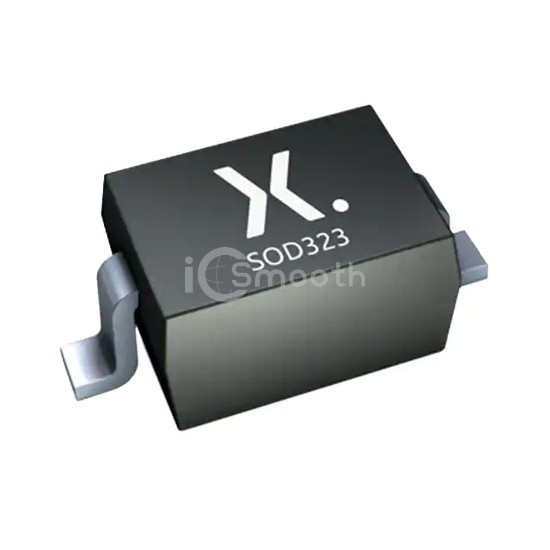

PESD5V0S1BAF

TVS DIODE 5VWM 14VC SOD323

PESD5V0S1BAF is a TVS - Diodes manufactured by Nexperia USA Inc.. TVS DIODE 5VWM 14VC SOD323. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-76, SOD-323.

Datasheet Request a Quote

In Stock: 6,880

Tiered Pricing USD

1+ $0.4100 —

10+ $0.2530 -38%

50+ $0.1818 -56%

100+ $0.1585 -61% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	5.5V
Voltage - Clamping (Max) @ Ipp	14V
Current - Peak Pulse (10/1000µs)	12A (8/20µs)

Power - Peak Pulse	130W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	35pF @ 1MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
