Name: PESD5V0L1BSF,315
Brand: Nexperia USA Inc.
SKU: PESD5V0L1BSF,315
Price: 0.34 USD
Availability: InStock

REF: PESD5V0L1BSF,315 Nexperia USA Inc.

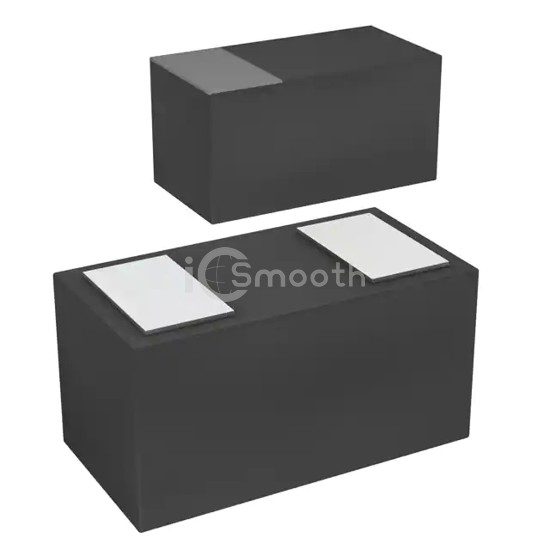

PESD5V0L1BSF,315

Nexperia USA Inc.

TVS DIODE 5.5VWM 13.5VC DSN0603

PESD5V0L1BSF,315 is a TVS - Diodes manufactured by Nexperia USA Inc.. TVS DIODE 5.5VWM 13.5VC DSN0603. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TA), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 252

Tiered Pricing USD

1+ $0.3400 —

10+ $0.2090 -39%

50+ $0.1496 -56%

100+ $0.1301 -62% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	13.5V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)

Power - Peak Pulse	35W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	12pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TA)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	DSN0603-2
