Name: PESD4USB5U-TTSX
Brand: Nexperia USA Inc.
SKU: PESD4USB5U-TTSX
Price: 0.82 USD
Availability: InStock

REF: PESD4USB5U-TTSX Nexperia USA Inc.

PESD4USB5U-TTSX

Nexperia USA Inc.

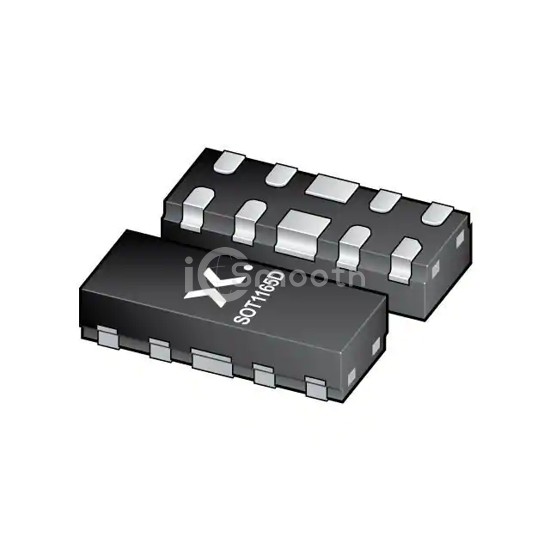

PESD4USB5U-TTS/SOT1165D/DFN251

PESD4USB5U-TTSX is a TVS - Diodes manufactured by Nexperia USA Inc.. PESD4USB5U-TTS/SOT1165D/DFN251. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 150°C (TA), package / case 10-WFDFN.

Datasheet Request a Quote

In Stock: 5,257

Tiered Pricing USD

1+ $0.8200 —

10+ $0.5080 -38%

50+ $0.3706 -55%

100+ $0.3258 -60% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	3.5V (Typ)
Current - Peak Pulse (10/1000µs)	7A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	Automotive, HDMI, USB
Capacitance @ Frequency	0.4pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TA)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	10-WFDFN
Supplier Device Package	DFN2510D-10
