Name: PESD24VL1BAZ
Brand: Nexperia USA Inc.
SKU: PESD24VL1BAZ
Price: 0.40 USD
Availability: InStock

REF: PESD24VL1BAZ Nexperia USA Inc.

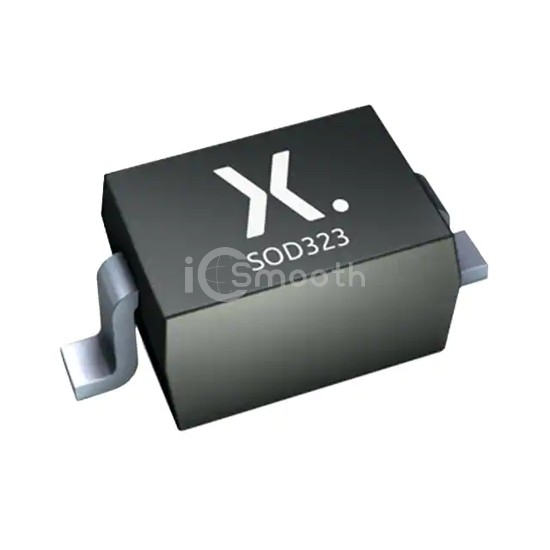

PESD24VL1BAZ

TVS DIODE 24VWM 70VC SOD323

PESD24VL1BAZ is a TVS - Diodes manufactured by Nexperia USA Inc.. TVS DIODE 24VWM 70VC SOD323. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-76, SOD-323.

Datasheet Request a Quote

In Stock: 29,400

Tiered Pricing USD

1+ $0.4000 —

10+ $0.2480 -38%

50+ $0.1778 -56%

100+ $0.1551 -61% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	24V (Max)
Voltage - Breakdown (Min)	25.4V
Voltage - Clamping (Max) @ Ipp	70V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)

Power - Peak Pulse	200W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	11pF @ 1MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
