Name: PESD1USB3SZ
Brand: Nexperia USA Inc.
SKU: PESD1USB3SZ
Price: 0.88 USD
Availability: InStock

REF: PESD1USB3SZ Nexperia USA Inc.

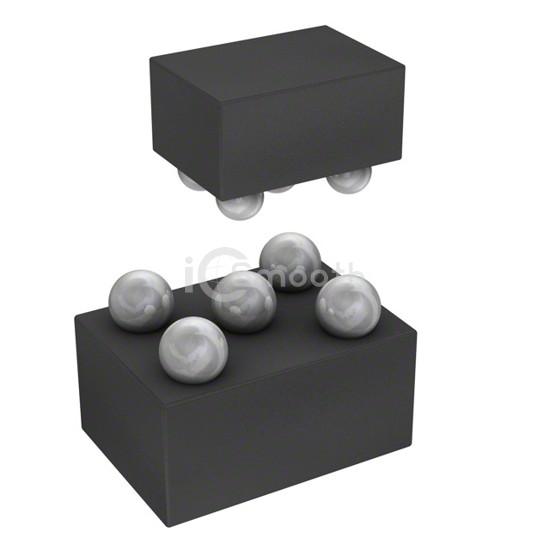

PESD1USB3SZ

TVS DIODE 5.5VWM 5WLCSP

PESD1USB3SZ is a TVS - Diodes manufactured by Nexperia USA Inc.. TVS DIODE 5.5VWM 5WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 5-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 2,893

Tiered Pricing USD

1+ $0.8800 —

10+ $0.5430 -38%

50+ $0.3948 -55%

100+ $0.3466 -61% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	2
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	-
Current - Peak Pulse (10/1000µs)	7A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	HDMI
Capacitance @ Frequency	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	5-UFBGA, WLCSP
Supplier Device Package	5-WLCSP (0.77x1.17)
