Name: PESD12VS1UAF
Brand: Nexperia USA Inc.
SKU: PESD12VS1UAF
Price: 0.48 USD
Availability: InStock

REF: PESD12VS1UAF Nexperia USA Inc.

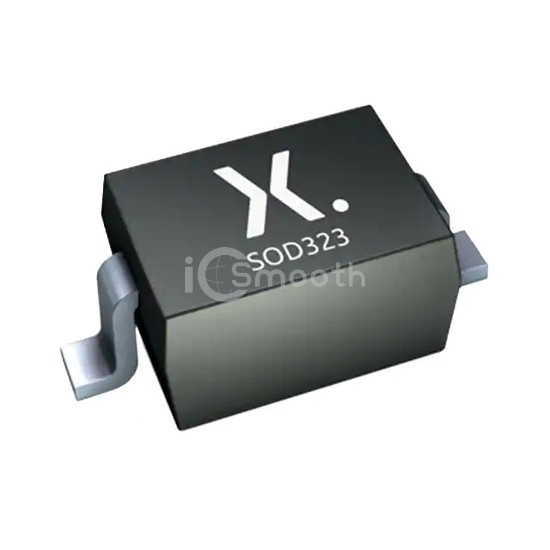

PESD12VS1UAF

TVS DIODE 12VWM 19VC SOD323

PESD12VS1UAF is a TVS - Diodes manufactured by Nexperia USA Inc.. TVS DIODE 12VWM 19VC SOD323. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TA), package / case SC-76, SOD-323.

Datasheet Request a Quote

In Stock: 9,131

Tiered Pricing USD

1+ $0.4800 —

10+ $0.2940 -39%

50+ $0.2118 -56%

100+ $0.1850 -61% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	12V (Max)
Voltage - Breakdown (Min)	13.3V
Voltage - Clamping (Max) @ Ipp	19V
Current - Peak Pulse (10/1000µs)	22.5A (8/20µs)

Power - Peak Pulse	600W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	160pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TA)
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
