PDZ24BF

In Stock: 2,542

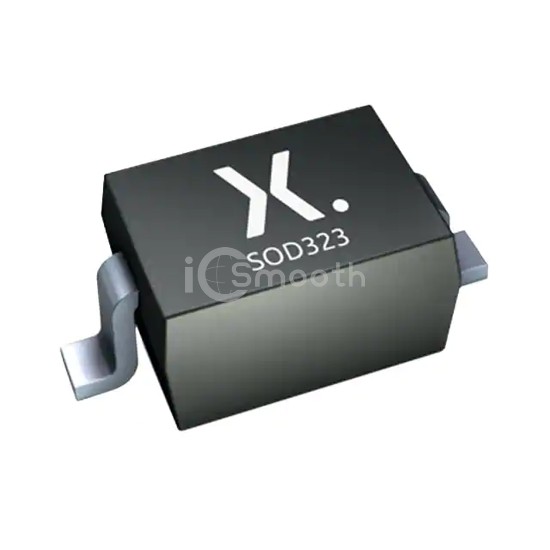

PDZ24BF - Nexperia USA Inc. - Diodes - Zener - Single
REF: PDZ24BF Nexperia USA Inc.
PDZ24BF

Nexperia USA Inc.

DIODE ZENER 24.25V 400MW SOD323

PDZ24BF is a Diodes - Zener - Single manufactured by Nexperia USA Inc.. DIODE ZENER 24.25V 400MW SOD323. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-76, SOD-323, power - max 400 mW.

Datasheet Request a Quote

In Stock: 2,542

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)24.25 V
Tolerance±2%
Power - Max400 mW
Impedance (Max) (Zzt)30 Ohms
Current - Reverse Leakage @ Vr50 nA @ 19 V
Voltage - Forward (Vf) (Max) @ If1.1 V @ 100 mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
