PDZ22B-QF

In Stock: 4,147

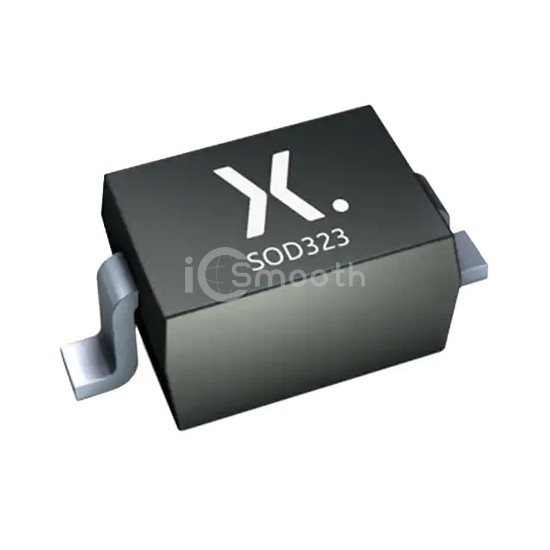

PDZ22B-QF - Nexperia USA Inc. - Diodes - Zener - Single
REF: PDZ22B-QF Nexperia USA Inc.
PDZ22B-QF

Nexperia USA Inc.

TRANS PREBIAS NPN/PNP

PDZ22B-QF is a Diodes - Zener - Single manufactured by Nexperia USA Inc.. TRANS PREBIAS NPN/PNP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-76, SOD-323, power - max 400 mW.

Request a Quote

In Stock: 4,147

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)22 V
Tolerance±2%
Power - Max400 mW
Impedance (Max) (Zzt)25 Ohms
Current - Reverse Leakage @ Vr50 nA @ 17 V
Voltage - Forward (Vf) (Max) @ If1.1 V @ 100 mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
