PDTC114YMB,315

In Stock: 6,345

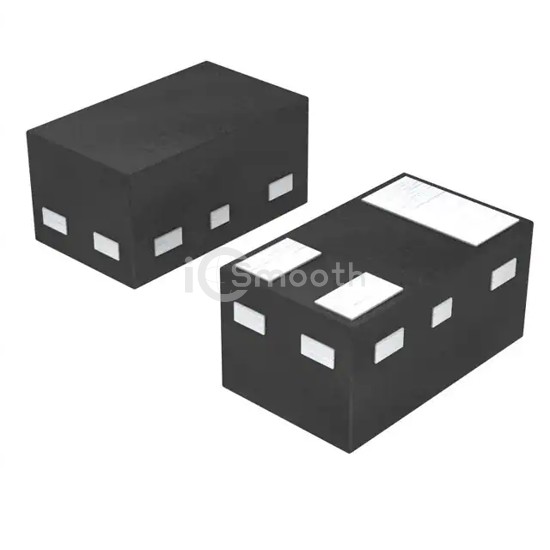

PDTC114YMB,315 - Nexperia USA Inc. - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: PDTC114YMB,315 Nexperia USA Inc.
PDTC114YMB,315

Nexperia USA Inc.

TRANS PREBIAS NPN 250MW 3DFN

PDTC114YMB,315 is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Nexperia USA Inc.. TRANS PREBIAS NPN 250MW 3DFN. Key specifications: mounting type Surface Mount, package / case 3-XFDFN, current - collector (ic) (max) 100 mA, power - max 250 mW.

Datasheet Request a Quote

In Stock: 6,345

Specifications

14 parameters
Product StatusActive
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)10 kOhms
Resistor - Emitter Base (R2)47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic100mV @ 250µA, 5mA
Current - Collector Cutoff (Max)1µA
Frequency - Transition230 MHz
Power - Max250 mW
Mounting TypeSurface Mount
Package / Case3-XFDFN
Supplier Device PackageDFN1006B-3
