PDTA143XMB,315

In Stock: 5,607
PDTA143XMB,315 - Nexperia USA Inc. - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: PDTA143XMB,315 Nexperia USA Inc.

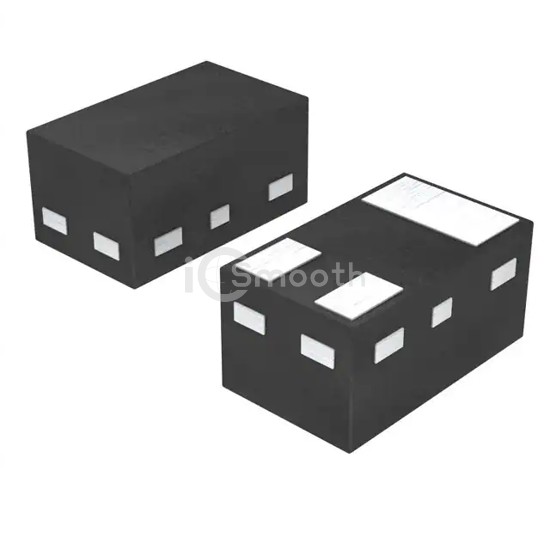

PDTA143XMB,315

Nexperia USA Inc.

TRANS PREBIAS PNP 250MW 3DFN

PDTA143XMB,315 is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Nexperia USA Inc.. TRANS PREBIAS PNP 250MW 3DFN. Key specifications: mounting type Surface Mount, package / case 3-XFDFN, current - collector (ic) (max) 100 mA, power - max 250 mW.

Datasheet Request a Quote

In Stock: 5,607

Specifications

14 parameters
Product StatusActive
Transistor TypePNP - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)4.7 kOhms
Resistor - Emitter Base (R2)10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic100mV @ 500µA, 10mA
Current - Collector Cutoff (Max)1µA
Frequency - Transition180 MHz
Power - Max250 mW
Mounting TypeSurface Mount
Package / Case3-XFDFN
Supplier Device PackageDFN1006B-3
