PDTA124XQBZ

In Stock: 4,429

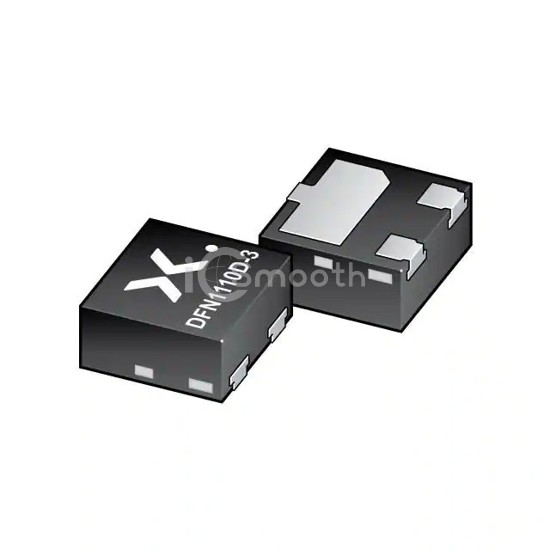

PDTA124XQBZ - Nexperia USA Inc. - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: PDTA124XQBZ Nexperia USA Inc.
PDTA124XQBZ

Nexperia USA Inc.

PDTA124XQB/SOT8015/DFN1110D-3

PDTA124XQBZ is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Nexperia USA Inc.. PDTA124XQB/SOT8015/DFN1110D-3. Key specifications: mounting type Surface Mount, Wettable Flank, package / case 3-XDFN Exposed Pad, current - collector (ic) (max) 100 mA, power - max 340 mW.

Datasheet Request a Quote

In Stock: 4,429

Specifications

14 parameters
Product StatusActive
Transistor TypePNP - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)22 kOhms
Resistor - Emitter Base (R2)47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic100mV @ 500µA, 10mA
Current - Collector Cutoff (Max)100nA
Frequency - Transition180 MHz
Power - Max340 mW
Mounting TypeSurface Mount, Wettable Flank
Package / Case3-XDFN Exposed Pad
Supplier Device PackageDFN1110D-3
